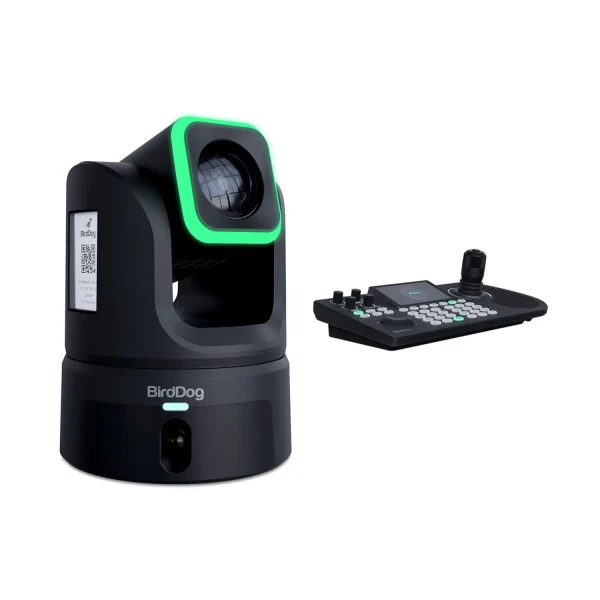

This BirdDog BDXLUCOMBO-B XL Ultra PTZ Camera Kit with KBD Controller, 3 Cameras, Black featuring 20x optical zoom and secondary built-in panoramic cameras, along with a KBD PTZ controller with an integrated display.
Designed for studios, live events, houses of worship, and multi-camera production environments, the kit combines advanced AI tracking, high-quality 4K video output, flexible connectivity, and precise PTZ control.
Each XL Ultra camera features a 4/3-inch 20.89MP primary image sensor and a secondary panoramic camera with a 1/1.8-inch Sony CMOS sensor and a 100° field of view.
The cameras support simultaneous dual 4K60 outputs through compatible connections, including 12G-SDI, 3G-SDI, HDMI, USB-C, NDI High Bandwidth, and SFP+.
The integrated AI tracking engine enables smooth, natural camera movement, while Full NDI and NDI HX support provide flexible video transmission for professional production workflows.
The included BirdDog KBD PTZ controller features a 1280 x 720 integrated screen for monitoring up to four cameras simultaneously or viewing a single camera in full-screen mode.
Its ergonomic design, tactile controls, and Fine-tune Mode with 10x joystick sensitivity help operators achieve accurate framing and comfortable operation during extended productions.
With support for NDI|HX2, NDI|HX3, VISCA-IP, ONVIF, RS-232, and RS-422, this kit provides versatile control for modern broadcast and streaming applications.
BirdDog BDXLUCOMBO-B XL Ultra PTZ Camera Kit with KBD Controller, 3 Cameras, Black Features:
- Complete Multi-Camera Solution: Includes three black BirdDog XL Ultra PTZ cameras and one KBD PTZ controller with an integrated screen.
- 20x Optical Zoom: Capture detailed close-ups and wide-angle shots for flexible broadcast and video production.
- Advanced Imaging: Features a 4/3-inch 20.89MP primary sensor and a secondary panoramic camera with a 100-degree field of view.
- Dual 4K60 Video Output: Supports simultaneous 4K60 output through compatible camera connections.
- AI-Powered Camera Tracking: Delivers natural camera movement with adjustable tracking speed, style, and sensitivity.
- Full NDI and NDI HX Support: Enables flexible IP video production and bandwidth-efficient streaming workflows.
- Professional Connectivity: Supports 12G-SDI, 3G-SDI, HDMI, USB-C, NDI, and SFP+ connectivity across compatible interfaces.
- PoE++ Support: Simplifies installation with compatible power and network infrastructure.
- Integrated Controller Display: Monitor up to four cameras simultaneously or switch to full-screen monitoring.
- Precision PTZ Control: Fine-tune Mode provides 10x joystick sensitivity for accurate camera positioning.
- Multiple Control Protocols: Supports NDI|HX2, NDI|HX3, VISCA-IP, ONVIF, RS-232, and RS-422.
- Camera Settings Synchronization: Effortless Camera Settings Sync helps transfer settings between compatible BirdDog X-series devices.
- Production Workflow Integration: Integrated tally borders support compatible TriCaster and vMix production environments.
- Eco-Conscious Construction: The controller incorporates ocean-bound plastics and recyclable aircraft-grade aluminum.
Why not buy this BirdDog BDXLUCOMBO-B XL Ultra PTZ Camera Kit with KBD Controller, 3 Cameras, Black today?
BirdDog BDXLUCOMBO-B XL Ultra PTZ Camera Kit with KBD Controller, 3 Cameras, Black Specifications
- Imaging
- Image Sensor: 4/3"-Type CMOS
- Horizontal Resolution (TV Lines): 2160 TV Lines
- Sensor Resolution: 20.89 Megapixel
- IR Cut Filter: No
- Focus Control:
- Autofocus
- Manual Focus
- Exposure Control
- Shutter Speed: 1/10000 to 1/1 Seconds
- Precise Scan Rate Control: No
- Signal-to-Noise Ratio: 50 dB
- Minimum Illumination: 300 Lux
- Flip / Mirror Support: Image Flip
- Lens
- Focal Length:
- 9.8 to 186mm
- 4.4mm
- Max Optical Zoom: 20x
- Max Digital Zoom: 16x
- Field of View:
- Vertical: 40 to 2°
- Diagonal: 79 to 4.5°
- Maximum Aperture: f/2.8 to 4.5
- Focal Length:
- Second Camera
- Secondary Image Sensor: 1/1.8"-Type CMOS
- Secondary Camera's Focal Length: 4.4mm
- Secondary Camera's Field of View:
- Horizontal: 85°
- Vertical: 53°
- Diagonal: 93°
- Video Capture
- Video Output:
- Via HDMI / Optical Fiber / RJ45 / SDI/BNC / USB:
- 4096 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps
- 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
- 1920 x 1080i at 50/59.94/60.00 fps
- 1280 x 720 at 50/59.94/60.00 fps
- Via HDMI / Optical Fiber / RJ45 / SDI/BNC / USB:
- Embedded Audio: Fiber/HDMI/NDI/SDI/USB
- Internal Recording: No
- Broadcast Output: NTSC/PAL
- Supported Protocols:
- Video Streaming: NDI/NDI 6/NDI/HX2/NDI/HX3/RTMP/RTSP
- Camera Control: IP/NDI/Pelco-D/Pelco-P/VISCA
- IP Streaming: 1280 x 720 to 1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94i, 59.94p, 60i, 60p
- Video Output:
- Control
- Presets: 256
- Pan/Tilt/Roll:
- Pan: 170° (-30 to 90°) at 0.05 to 120°/s
- Tilt: 170° (-30 to 90°) at 0.05 to 90°/s
- Tally Light: Yes
- Networking
- Wireless: No
- Interface
- Media/Memory Card Slot: Single Slot: microSD (Unspecified Type)
- Video I/O:
- 1 x BNC (12G-SDI) Output
- 1 x BNC (3G-SDI) Output
- 1 x LC (12G-SDI) Output
- 1 x HDMI Output
- 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output
- Audio I/O: 2 x XLR 3-Pin Mic/Line Input
- Other I/O:
- 1 x BNC (Genlock)
- 1 x BNC (Timecode)
- 1 x LC Fiber
- 1 x IR (IR)
- 1 x RJ45 (LAN)
- 1 x RJ45 (RS-232, RS-422)
- Built-In Microphone: No
- Built-In Speaker: No
- Power
- PoE Support: Yes: PoE++ 802.3bt
- Power I/O: 1 x Barrel (12VDC at 5 A)
- Power Consumption: 40 W
- Environmental
- Operating Conditions: 32 to 104°F / 0 to 40°C up to 80% Humidity
- Impact Resistance: No
- Environmental Resistance: No
- General
- Security Lock Support: Kensington Lock Slot
- Dimensions (W x H x D): 8.6 x 11.5 x 10.4" / 218.6 x 291.6 x 263.3 mm
- Weight: 9 lb / 4 kg (Body Only)
- Packaging Info
- Package Weight: 17.44 lb
- Box Dimensions (LxWxH): 17.3 x 15 x 12.7"
