This BirdDog BDX1-30BUNDLE-W X1 PTZ Camera Kit with KBD Controller, 3 Cameras, White is a professional multi-camera solution for virtual production, broadcast studios, live streaming, and live events.
Put together by HDTVSupply, this kit includes three white BirdDog X1 PTZ cameras with 20x optical zoom, one KBD IP PTZ controller for controlling up to four cameras, and a BirdDog hard case with a custom-cut foam insert for convenient equipment storage and transportation.

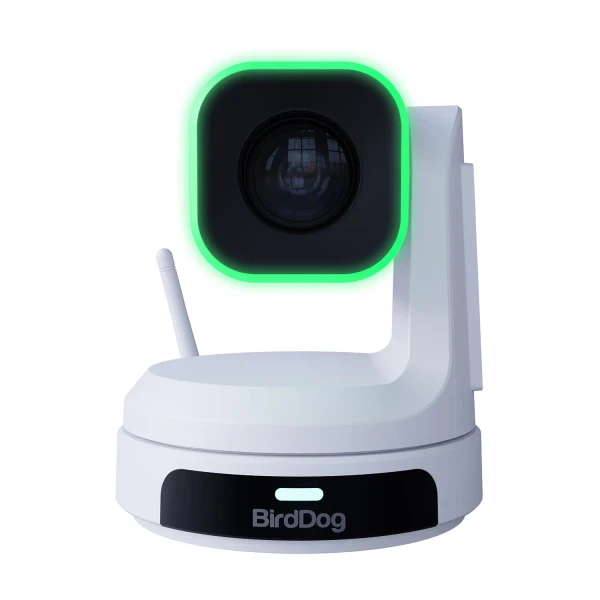

Each BirdDog X1 PTZ Camera captures Full HD 1080p60 video and features AI auto framing, AI tracking, 20x optical zoom, color matrix, API, and Kelvin control.
Its low-light performance, built-in Wi-Fi 5, and NDI|HX2 and NDI|HX3 support provide flexibility for professional video production and IP-based workflows.
The X1 camera features HDMI and USB/UVC outputs with independent resolution settings for connecting to compatible production systems, Microsoft Teams, Zoom, and other applications.
Its integrated NDI|HX decoder supports confidence monitoring, return feeds, and teleprompter applications.
A built-in Halo tally light and 2.93-inch E-Ink display help identify camera status, while Power over Ethernet (PoE) support simplifies installation.
The included BirdDog KBD PTZ Controller with Integrated Screen features a large 1280 x 720 display for monitoring up to four cameras simultaneously or viewing one camera in full-screen mode.
Its rugged, ergonomic design incorporates a hand-rest area and tactile controls for comfortable operation. Fine-tune Mode provides 10x joystick sensitivity for precise on-air framing.
The KBD controller supports NDI|HX2, NDI|HX3, VISCA-IP, ONVIF, RS-232, and RS-422 for flexible camera control.
Effortless Camera Settings Sync allows settings to be copied between compatible X-series devices, while integrated tally borders facilitate live switching with compatible TriCaster or vMix platforms.
The controller is built with ocean-bound plastics and recyclable aircraft-grade aluminum.
The included BirdDog Hard Case with Foam Insert for 3 MAX/X1/X1 Ultra Cameras features custom-cut compartments for three compatible PTZ cameras, a KBD controller, cables, and accessories.
Its integrated top handle makes transporting your camera equipment between production locations more convenient.
BirdDog BDX1-30BUNDLE-W X1 PTZ Camera Kit with KBD Controller, 3 Cameras, White Features:
- Complete Multi-Camera Kit: Includes three white BirdDog X1 PTZ cameras, one KBD PTZ controller, and a compatible hard case with custom-cut foam.
- 20x Optical Zoom: Capture distant subjects and detailed close-ups with each BirdDog X1 PTZ camera.
- Full HD 1080p60 Video: Supports Full HD video capture at up to 60 frames per second.
- AI Tracking and Auto Framing: Helps follow subject movement and maintain consistent camera framing.
- NDI|HX2 and NDI|HX3 Support: Provides flexible network video connectivity for compatible production workflows.
- Built-In Wi-Fi 5: Supports wireless connectivity for installations where running network cables may be difficult.
- Power over Ethernet: Supports power delivery over a compatible Ethernet connection to simplify camera installation.
- HDMI and USB/UVC Outputs: Connects to compatible video production equipment and conferencing applications.
- Independent Output Resolutions: Allows HDMI and USB/UVC outputs to use independent resolution settings.
- Integrated NDI|HX Decoder: Supports confidence monitoring, return feeds, and teleprompter applications.
- Built-In Halo Tally Light: Provides a visible camera status indicator for presenters and production crews.
- 2.93-Inch E-Ink Display: Helps identify cameras and manage multi-camera setups.
- Advanced Image Controls: Includes color matrix, API, and Kelvin control for image adjustment.
- Four-Camera Monitoring: The KBD controller can monitor up to four cameras simultaneously or display one camera in full-screen mode.
- Precision Joystick Control: Fine-tune Mode provides 10x joystick sensitivity for accurate PTZ movements.
- Multiple Control Protocols: Supports NDI|HX2, NDI|HX3, VISCA-IP, ONVIF, RS-232, and RS-422.
- Camera Settings Synchronization: Copies settings between compatible BirdDog X-series devices.
- Integrated Tally Borders: Supports live switching workflows with compatible TriCaster and vMix platforms.
- Custom-Fit Hard Case: Provides compartments for three compatible MAX, X1, or X1 Ultra cameras, a KBD controller, cables, and accessories.
- Convenient Transportation: Features an integrated top handle for carrying compatible camera equipment between production locations.
Why not buy this BirdDog BDX1-30BUNDLE-W X1 PTZ Camera Kit with KBD Controller, 3 Cameras, White today?
BirdDog BDX1-30BUNDLE-W X1 PTZ Camera Kit with KBD Controller, 3 Cameras, White Specifications
- Number of Supported Cameras
- 255 Channels via IP
- Video
- IP Streaming: NDIHX and ONVIF: UHD 4K
- Interface
- Controls:
- 1 x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick
- Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Button
- Control I/O:
- 1 x D-Sub 9-Pin (RS-232) Input/Output
- 1 x Phoenix (RS-422) Input/Output
- 1 x RJ45 (IP Control/LAN) Input/Output Shared with Video/Power
- Embedded Audio: No
- Other I/O: 1 x USB-A Input/Output
- Power I/O:
- 1 x Barrel Input
- 1 x RJ45 Input Shared with Video/Control
- Media/Memory Card Slot: No
- Compatibility: Universal
- Controls:
- Protocols
- Supported Protocols: IP/NDI/NDI|HX2/NDI|HX3/ONVIF/Pelco-D/Pelco-P/RS-232/RS-422/VISCA
- Presets: 255
- Integrated Display
- Display Size: 5" / 13 cm
- Native Resolution: 1280 x 720
- Touchscreen: No
- Number of Displays: 1
- Power
- PoE Support: Yes: PoE 802.3af
- Power Consumption: ≤5 W
- Input Power: 12 VDC
- General
- Operating Conditions: 14 to 130°F / -10 to 54°C at 20 to 80% Humidity
- Storage Conditions: 14 to 130°F / -10 to 54°C up to 90% Humidity
- Security Lock Support: No
- Dimensions: 14.8 x 7 x 4.6" / 377 x 177 x 118 mm
- Packaging Info
- Package Weight: 8.61 lb
- Box Dimensions (L x W x H): 16.2 x 8.7 x 6.9"
