This BirdDog BDX1BUNDLE-W X1 PTZ Camera Bundle with KBD Controller, 3 Cameras, White is complete PTZ capture and streaming solution includes three BirdDog X1 PTZ cameras with 20x optical zoom and one KBD PTZ controller with an integrated screen for controlling and monitoring up to four cameras.

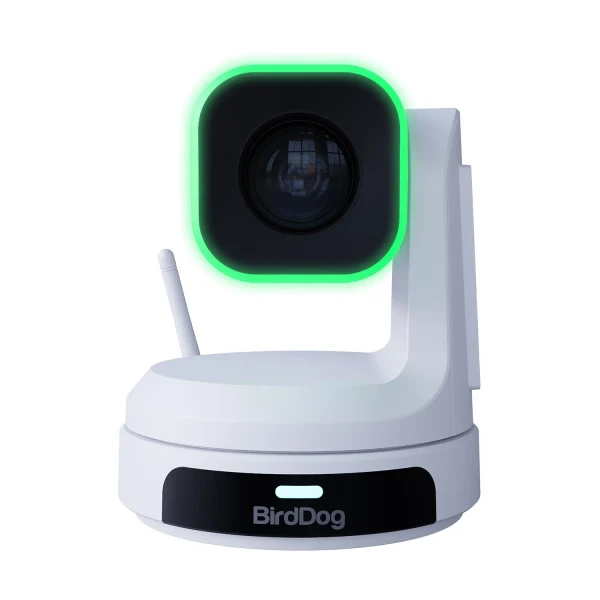

Each BirdDog X1 PTZ Camera captures Full HD 1080p60 video and features AI auto framing, AI tracking, color matrix, API, and Kelvin control.
Its 20x zoom and exceptional low-light performance support a variety of production environments.
Built-in Wi-Fi 5 and NDI|HX2 and NDI|HX3 integration provide flexible connectivity for compatible network-based video workflows.
The X1 camera includes HDMI and USB/UVC outputs with independent resolution settings for direct connection to Microsoft Teams, Zoom, and other compatible applications.
An integrated NDI|HX decoder supports confidence monitoring, return feeds, and teleprompter use.
The built-in Halo tally light and 2.93-inch E-Ink display add to the camera's functionality, while Power over Ethernet (PoE) support allows power delivery through a single Ethernet cable.
The included BirdDog KBD PTZ Controller with Integrated Screen features a 1280 x 720 display for monitoring up to four cameras simultaneously or viewing one camera in full-screen mode.
Its rugged, ergonomic design, hand-rest area, and tactile controls support comfortable operation during extended production sessions.
Fine-tune Mode provides 10x joystick sensitivity for precise camera framing, while Effortless Camera Settings Sync helps copy settings between compatible X-series devices.
The KBD controller supports NDI|HX2, NDI|HX3, VISCA-IP, ONVIF, RS-232, and RS-422 for flexible camera control.
Integrated tally borders facilitate live switching with compatible TriCaster or vMix platforms.
Built with ocean-bound plastics and recyclable aircraft-grade aluminum, the controller combines operational functionality with an eco-conscious design.
BirdDog BDX1BUNDLE-W X1 PTZ Camera Bundle with KBD Controller, 3 Cameras, White Features:
- Complete PTZ Camera Bundle: Includes three BirdDog X1 PTZ cameras and one KBD PTZ controller with an integrated screen.
- 20x Zoom: Capture distant subjects and detailed close-ups with each X1 PTZ camera.
- Full HD 1080p60 Video: Captures video at 1080p60 resolution.
- AI Tracking and Auto Framing: Helps follow subject movement and maintain consistent camera framing.
- Advanced Image Controls: Includes color matrix, API, and Kelvin control.
- Exceptional Low-Light Performance: Supports video capture in low-light environments.
- NDI|HX2 and NDI|HX3 Integration: Provides network video connectivity with reduced network impact and excellent image quality.
- Built-In Wi-Fi 5: Supports wireless connectivity for installations where network cabling may be difficult.
- Power over Ethernet: Allows camera power delivery through a single Ethernet cable.
- HDMI and USB/UVC Outputs: Connects to compatible equipment, Microsoft Teams, Zoom, and other applications.
- Independent Output Resolutions: Supports independent HDMI and USB/UVC output resolution settings.
- Integrated NDI|HX Decoder: Supports confidence monitoring, return feeds, and teleprompter applications.
- Built-In Halo Tally Light: Features a daylight-visible border and interchangeable illuminated numbering system.
- 2.93-Inch E-Ink Display: Adds camera identification functionality.
- Four-Camera Monitoring: The KBD controller monitors up to four cameras simultaneously or displays one camera in full-screen mode.
- 1280 x 720 Integrated Display: Provides a screen for camera monitoring and control.
- Precision Joystick Control: Fine-tune Mode provides 10x joystick sensitivity for precise framing.
- Multiple Control Protocols: Supports NDI|HX2, NDI|HX3, VISCA-IP, ONVIF, RS-232, and RS-422.
- Camera Settings Synchronization: Copies settings between compatible X-series devices.
- Integrated Tally Borders: Facilitates live switching with compatible TriCaster or vMix platforms.
- Ergonomic Controller Design: Features a hand-rest area and tactile controls for extended operation.
- Eco-Conscious Materials: The KBD controller uses ocean-bound plastics and recyclable aircraft-grade aluminum.
Why not buy this BirdDog BDX1BUNDLE-W X1 PTZ Camera Bundle with KBD Controller, 3 Cameras, White today?
BirdDog BDX1BUNDLE-W X1 PTZ Camera Bundle with KBD Controller, 3 Cameras, White Specifications
- Imaging
- Image Sensor: 1/2.8"-Type CMOS
- Horizontal Resolution (TV Lines): 1080 TV Lines
- Effective Sensor Resolution: 2.07 Megapixel (1920 x 1080)
- IR Cut Filter: No
- Focus Control:
- Autofocus
- Manual Focus
- Exposure Control
- Shutter Speed: 1/10000 to 1/25 Second
- Signal-to-Noise Ratio: 50 dB
- White Balance:
- Range: 2500 to 9000K
- Presets: Manual, VAR
- Lens
- Focal Length: 5.5 to 110mm
- Max Optical Zoom: 20x
- Field of View:
- Horizontal: 55.8 to 3.2°
- Vertical: 32.2 to 1.8°
- Diagonal: 61 to 3.64°
- Maximum Aperture: f/1.6 to 3.5
- Video Capture
- Video Output:
- Via HDMI / RJ45 / USB:
- 1920 x 1080p at 25/30.00/50/60.00 fps
- 1280 x 720 at 25/30.00/50/60.00 fps
- Via HDMI / RJ45 / USB:
- Embedded Audio: HDMI/LAN (RJ45)/SDI
- Internal Recording: No
- Broadcast Output: NTSC/PAL
- Video Output:
- Control
- Presets: 255
- Tally Light: Yes
- Networking
- Wireless: Wi-Fi 5 (802.11ac) / IR
- Interface
- Video I/O: 1 x HDMI Output
- Other I/O:
- 1 x USB-C
- 1 x RJ45 (NDI, RS-232) Control
- Built-In Microphone: No
- Built-In Speaker: No
- Power
- PoE Support: Yes: PoE 802.3af
- Power I/O: 1 x RJ45 (12VDC at 2 A) Input
- Power Consumption: 13 W
- Environmental
- Operating Conditions: 14 to 104°F / -10 to 40°C at 20 to 80% Humidity
- General
- Mounting: 1 x 1/4"-20 Female
- Dimensions (W x H x D): 10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm
- Weight: 2.98 lb / 1.35 kg (Body Only)
- Packaging Info
- Package Weight: 5.73 lb
- Box Dimensions (L x W x H): 11.9 x 8.5 x 7.9"
